All-hydraulic multifunctional drilling rig machine for sale YDL-3

  • Product is the original price：0.00
  • inventory：0
  • The product weight：

Quick Details

  • Condition: New

  • Type: Rotary Drilling Rig

  • Power Type: Electric

  • Place of Origin: Jiangsu, China (Mainland)

  • Brand Name: xitan

  • Model Number: YDL-300DT

  • Usage: geology engineering

  • Voltage: 380V

  • Power(W): 55+18.5KW

  • Dimension(L*W*H): 6.8*2.1*2.75m

  • Weight: 10000kg

  • Certification: ISO9001:2008

  • Warranty: 6 Months

  • After-sales Service Provided:Engineers available to service machinery overseas

  • Model: YDL-300DT

  • Hole Depth: 300m

  • Hole angle: -5-90°

  • Lifting force: 25T

  • feeding force: 12.8T

  • Stroke of slide frame: 1500mm

  • stroke of power head: 7000mm

  • Max torque of power head: 13900NM

  • Min height from ground: 360mm

  • Speed: 1.5km/h



Description:



YDL-300DT is a new type saving-energy drilling rig with energy conservation.The drive is  multi-function full hydraulic.

When matched drilling tools,it can work with many technology,like Pneumatic DTH drilling, air-foam drilling, air-lift reverse circulation drilling,mud circulation drilling,roller bit drilling etc.



Applications:



1. Mainly used for water well drilling,monitoring well,geothermal air-conditioning hole construction,defence construction,anchoring rod,high pressure jet grouting ect drilling work.



2.Also can used for hydropower project,high way,railway,city foundation etc geotechnical engineering construction.

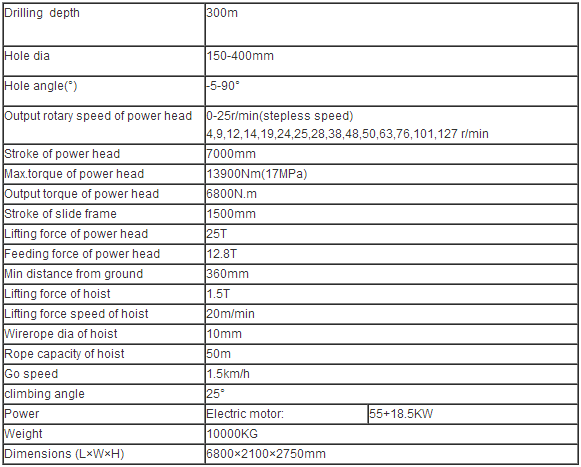

Specifications:
