Full hydraulic water well drilling rig YSJ-300

  • Product is the original price：0.00
  • inventory：0
  • The product weight：

Quick Details

  • Condition: New

  • Type: crawler drilling rig

  • Power Type: Diesel

  • Place of Origin: Jiangsu, China (Mainland)

  • Brand Name: xitan

  • Model Number: YSJ-300

  • Usage: Water Well

  • Voltage: 380V

  • Power(W): 84KW

  • Dimension(L*W*H): 4000*2090*2760mm

  • Weight: 8500kg

  • Certification: ISO9001:2008

  • Warranty: 6 Months

  • After-sales Service Provided: Engineers available to service machinery overseas

  • Model: YSJ-300

  • Hole Depth: 350m

  • Hole diameter: 110-325mm

  • Max torque: 6000Nm

  • Stroke of power head: 7000mm

  • Max .lifting capacity: 25T

  • Max .feeding capacity: 12.8T

  • lifting speed of hoist: 20m/min

  • Rope diameter: 10mm

  • Walk speed: 2km/h

Product Description

 1.Full hydraulic drilling rig with strong drilling capacity,wide range of application,high drilling speed,strong ability to handle    accident,high work efficiency.



2.The power head with two speed of mechanical and hydraulic.It is fit for various drilling ways.



3.This drilling rig use Inside and outside telescopic drilling mast,the head power stroke can be 7000mm,ont time drilling can use two 3000mm rod,reduce one add rod time,double efficient time.



4.It is based with crawler to move conveniently and walk fastly.Engineering rubber is not harmful to ground,also can work in city.



5.The drilling rig is with four long stroke cylinder,also can horizontally move to the sides respectively.Once the four cylinder sprag,the stroke can be 1700mm,the truck can backward directly and no need crane for drilling rig assembleandunassemble.



6.The major components of hydraulic system are good from domestic and overseas,to make whole drilling rig stable and reliable.

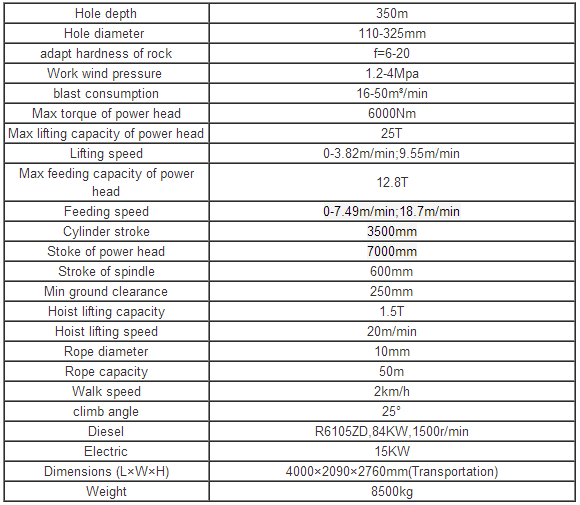

Specifications:
