High-pressure Portable Jet Grouting drilling equipment XP-20

  • Product is the original price：0.00
  • inventory：0
  • The product weight：

Quick Details

  • Condition: New

  • Type: jet-grouting

  • Power Type: Electric

  • Place of Origin: Jiangsu, China (Mainland)

  • Brand Name: xitan

  • Model Number: XP-20

  • Usage: jet-grouting and anchoring

  • Voltage: 380V

  • Power(W): 18.5+1.5

  • Dimension(L*W*H): 3.05*0.84*1.5m

  • Weight: 1400kg

  • Certification: ISO9001:2008

  • Warranty: 6 Months

  • After-sales Service Provided:Engineers available to service machinery overseas

  • Model: XP-20

  • Hole Depth: 20-50m

  • Hole angle: 0-90°

  • Hole diameter: 90-168mm

  • Lifting force: 21KN

  • feeding force: 15KN

  • lifting speed: 0-1.1m/min

  • feeding speed: 1.5,9 m/min

  • stroke of power head: 1800mm

  • Output torque of power head: 2500N.M

Quick Detail:
1. XP-20 is applied to soft ground stabilization, seepage control of basement of high-rise buildings, renovation of big river and levee, reinforcement of railway, highway and pier, etc.
2. This jet grout drill rig can work in a small space. With max width 1370mm, and length 3045mm, the drilling equipment can work in doors. The max weight of bulk drilling machine is 300kg, so it is very convenient to move and displace.
3.  Applicable for wide range of processing except jet-grouting processing requirements, this machine may also apply in anchoring processing construction

Description:
1.XP-20 serial low loading jet-grouting drill is a dual-duty drill manufactured by Jiangsu Wuxi Mineral Exploration Machinery General Factory Co., Ltd. in compliance with the market demand, and it is applicable for soft ground stabilization, seepage control of basement of high-rise buildings, renovation of big river and levee, reinforcement of railway, highway and pier, etc.
2. The drilling rig can apply singe pipe, duplex pipe, triple pipe tools and so on. Optional pendulum jetting device can be added to achieve the pendulum jet-grouting function.
3. The drilling rig has various chassis mode like skid mounted, crawler mounted.
4.   Applicable for wide range of processing except jet-grouting processing requirements, this machine may also apply in anchoring processing construction.

Applications:
1.For jet-grouting and anchoring
2.Soft ground stabilization, seepage control of basement of high-rise buildings, renovation of big river and levee, reinforcement of railway, highway and pier, etc.
3. Singe pipe, duplex pipe, triple pipe

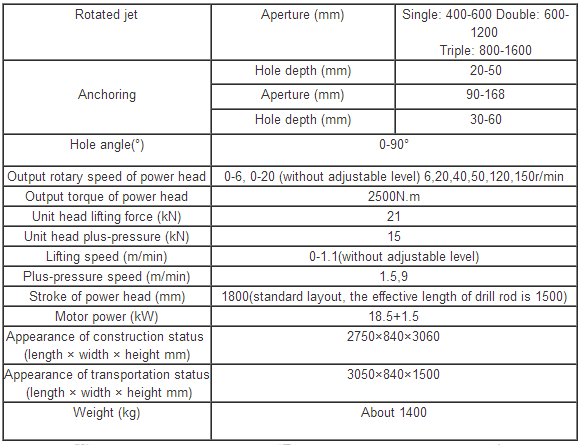

Specifications:
