Hydraulic power head jet grouting drilling rig with high&nbs

  • Product is the original price：0.00
  • inventory：0
  • The product weight：

Quick Details

  • Condition: New

  • Type: jet-grouting

  • Power Type: Electric

  • Place of Origin: Jiangsu, China (Mainland)

  • Brand Name: xitan

  • Model Number: XP-30A

  • Usage: geology engineering

  • Voltage: 380V

  • Power(W): 18+4+1.5

  • Dimension(L*W*H): 6.41*2.25*2.95m

  • Weight: 8500kg

  • Certification: ISO9001:2008

  • Warranty: 6 Months

  • After-sales Service Provided:Engineers available to service machinery overseas

  • Model: XP-30A

  • Hole Depth: 50m

  • Hole angle: 0-90°

  • Lifting force: 60KN

  • feeding force: 30KN

  • lifting speed: 1.6-2.6m/min

  • feeding speed: 3.2-5.5m/min

  • Stroke of power head: 3300mm

  • Output rotary speed of power head:10,12,22,40,80,140r/min

  • Output torque of power head: 3000N.M

  • Quick Detail:

  •

  • 1. XP-30A drilling rig is one kind of full hydraulic power head drilling rig.

  •

  • 2. We also add stepless speed regulation module when the anchoring is drilling, which makes the operation more convenient.

  •

  • 3. With good adaptability, this jet grouting drilling rig can be configured with different modules and drilling tools, so as to solve various jet grouting processes.

  •

  • 4. Equipped with the main, vice winch and electrical control which can reduce labor force and enhance production efficiency.

  • Description:

  •

  • 1.  XP-30A drilling rig can accomplish drilling hole and jet grouting process in once time when operating in some certain soft layer.

  •

  • 2.  During the jet grouting lifting, the depth of the rotary jet shall not exceed the height of the assistant tower (15m). There is no need to dismantle the drill rod.

  •

  • 3. Besides jet grouting process, this jet grouting drilling rig is available for the construction of anchoring technology.

  •

  • 4.  With good adaptability, this jet grouting drilling rig can be configured with different modules and drilling tools, so as to solve various jet grouting processes.

  •

  • 5. The drill rigs adopt double winches and electrical control which can reduce labor force and enhance production efficiency.

  •

  • 6. The shifting and turning of the drill rig, speed change of power head and drill lifting are all adopted hydraulic control, featuring in flexible operation, saving time and labor cost.

  • Applications:

  •

  • 1. For jet-grouting and anchoring

  •

  • 2. Soft ground stabilization, seepage control of basement of high-rise buildings, renovation of big river and levee, reinforcement of railway, highway and pier, etc.

  •

  • 3. Singe pipe, duplex pipe, triple pipe

  •

  •

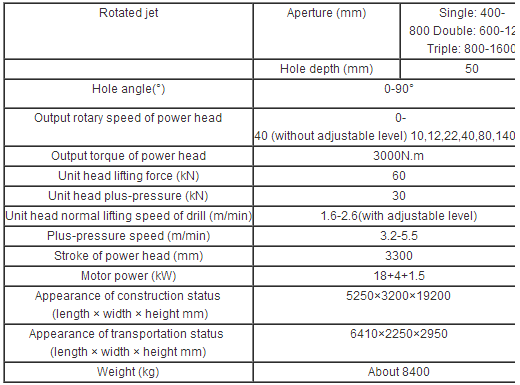

  • Specifications:
