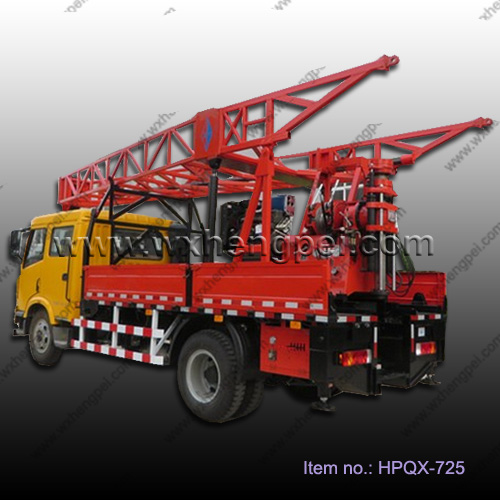

Hydraulic truck mounted drilling machine DPP-300

  • Product is the original price：0.00
  • inventory：0
  • The product weight：

Quick Details

  • Condition: New

  • Type: truck mounted

  • Power Type: Diesel

  • Place of Origin: Jiangsu, China (Mainland)

  • Brand Name: xitan

  • Model Number: DPP-300

  • Usage: Engineering exploration

  • Voltage: 380V

  • Power(W): 40kw

  • Dimension(L*W*H):8250*2500*3700mm

  • Weight: 10810kg

  • Certification: ISO9001:2008

  • Warranty: 6 Months

  • After-sales Service Provided:Engineers available to service machinery overseas

  • Model: DPP-300

  • Hole Depth: 300,360,600m

  • Rod diameter: 42,50,60mm

  • Lifting force: 60KN

  • feeding force: 80KN

  • Stroke of spindle: 600mm

  • Max.torque of spindle: 3500N.m

  • Hoist Max .lifting capacity: 15KN

  • Stroke of frame: 350mm

  • Capacity of drum: 450m

  • Product Description

  • 1.It has many (8 grade) rotary speed series and reasonable speed range.Not only apply to engineering geological exploration,but also apply to diamond core drilling.

  •

  • 2.Low rotary speed,big torque,wide usage range,it can drill with high speed,also low speed with big hole diameter.

  •

  • 3.Two reverse speed, labour intensity is not big for hole accident,also safe.

  •

  • 4.The structure is advanced,well laid-out,flexible and reliable operation,it is covenient to  maintenance and repair.

  •

  • 5.Hydraulic pressure with strong lifting capacity,tabour saving and safe.

  •

  • 6.Double hoists design,main hoist is  flexible and reliable operation;Vice hoist with big capacity of drum.

  •

  • 7.The power head can move automatically to save labor,extend the performance life.

  •

  • 8.The four ground jack and tower is hydraulic operation,convenient and reliable.

  •

  • Application:

  • 1. geological prospecting and mineral well

  •

  • 2.with the liquid and the borehole of earthquake prospecting.

  •

  • 3.The drilling hole for building blaster.

  •

  • 4.  geological exploration or water well.

  •

  • 5.Fit for wire-line core drilling engineering require.


  • 6.Farmland water well, geological prospecting,  Ground Source Heat Pump,roadway,bridge etc.

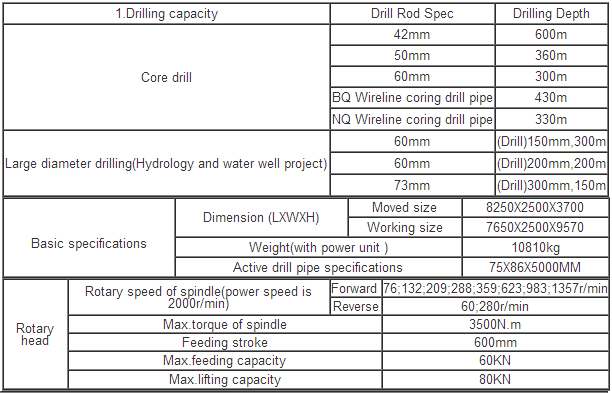

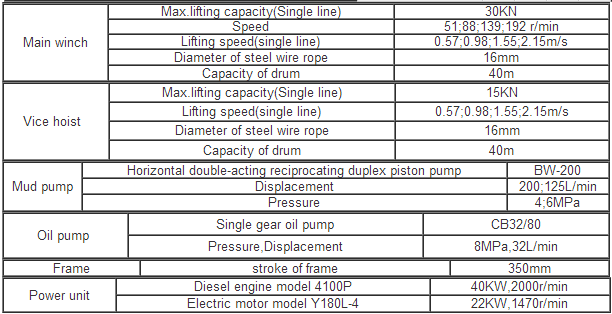

  • Specifications:
