Hydraulic Crawler Drill Machine for sale GXYL-2

  • Product is the original price：0.00
  • inventory：0
  • The product weight：

Quick Details

  • Condition: New

  • Type: carwler drilling rig

  • Power Type: Diesel

  • Place of Origin: Jiangsu, China (Mainland)

  • Brand Name: xitan

  • Model Number: GXYL-2

  • Usage: geology engineering

  • Voltage: 380V

  • Power(W): 11kw

  • Dimension(L*W*H): 1.45*0.97*1.28m

  • Weight: 500kg

  • Certification: ISO9001:2008

  • Warranty: 6 Months

  • After-sales Service Provided:Engineers available to service machinery overseas

  • Model: GXYL-2

  • Hole Depth: 300-600m

  • rod diameter: 42-50

  • Hole angle: 360°

  • Lifting force: 25KN

  • feeding force: 50KN

  • Hosit lifting capacity: 15KN

  • Stroke of spindle: 600mm

  • Spindle Forward speed:70;121;190;263;329;570;899;1241rpm

  • Spindle Reverse speed: 55/257rpm

Quick Detail:



1.Model GXYL-2 drilling rig has various chassis mode like skid mounted, crawler mounted.



2.There are more speed grade (8 grades), reasonable speed range and high torque while low speed. Max. torque is up to 2760 N·m.



3. Model GXYL-2 drilling rig is a kind of spindle rotatory drilling rig. It is suitable for engineering geological prospecting, solid mineral’s survey and exploration, water discharge tunnel.



4. Easy to master the hole condition with a long life anti-vibration meter. It is convenient for clamping and loosing drill heave with hydraulic chuck.





Description:



1. Model GXYL-2 drilling rig is a kind of spindle rotatory drilling rig. It was developed by Wuxi Mineral Exploration Machinery General Factory, Jiangsu Province. It is suitable for engineering geological prospecting, solid mineral’s survey and exploration, water discharge tunnel.



2. Model GXYL-2 drilling rig has various chassis mode like skid mounted, crawler mounted.



3. It can choose bits, such as diamond bits, hard alloy bits while drilling in accordance with different formation.



4. Light in weight, the rig can be disassembled easily, the biggest apparatus is in 200kg. The whole drill is in 1000kg, it can be moved easily especially in mountain area.

Applications:



1.Engineering geological exploration.



2. Survey and exploration of solid mineral deposit.



3.Water discharge tunnel.



4.Inspecting hole of various concrete stucture.

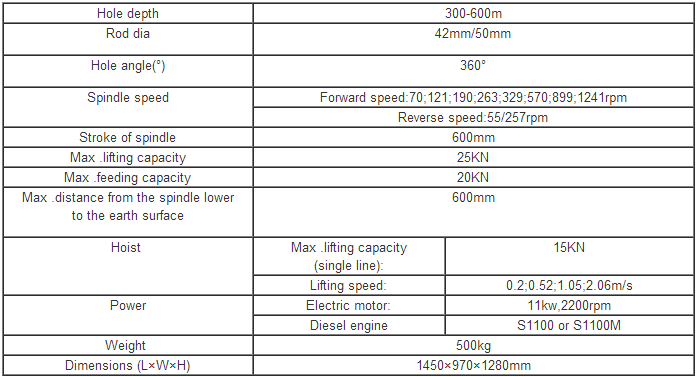

Specifications:
