Geological exploration drilling machine with crawler GXYL-1

  • Product is the original price：0.00
  • inventory：0
  • The product weight：

Quick Details

  • Condition: New

  • Type: exploration drilling rig

  • Power Type: Electric

  • Place of Origin: Jiangsu, China (Mainland)

  • Brand Name: xitan

  • Model Number: GXYL-1

  • Usage: geology exploration

  • Voltage: 380V

  • Power(W): 11kw

  • Dimension(L*W*H): 1.45*0.97*1.28m

  • Weight: 500kg

  • Certification: ISO9001:2008

  • Warranty: 6 Months

  • After-sales Service Provided:Engineers available to service machinery overseas

  • Model: GXYL-1

  • Hole Depth: 50-150m

  • rod diameter: 76-150mm

  • Hole angle: 360°

  • Lifting force: 25KN

  • feeding force: 20KN

  • Spindle Forward speed:61;163;338;654rpm

  • Spindle Reverse speed: 45rpm

  • Hoist Max .lifting capacity: 15KN

  • power: Electric motor

Quick Detail:

1. GXYL-1 drilling has large input power and output torque. Its drilling capacity is strong. Its capacity of dealing with accidents is good. It has an oil pressure feeding structure and its labour intensity is low.

2. The drilling rig has various chassis mode like skid mounted, crawler mounted.

3. The drill and the pump are transmitted separately, improving the output torque and avoiding the accidents in the hole.

4. Oening the clinostat, it is easy to lift and loose the drill.





Description:

1. GXYL-1 is a spindle type drill. It can be used in engineering geological exploration, survey and exploration of solid mineral deposit, blasting engineering hole, inspecting hole of various concrete stucture, etc.

2. According to various layer, it can be drilling with diamond bit, hard alloy bit, auger bit, etc.

3.The drilling rig has various chassis mode like skid mounted, crawler mounted.

4.The drill is convenient for maintenance and repair for simple structure and reasonable layout.

5. Opening the clinostat, it is easy to lift and loose the drill.





Applications:

1.Engineering geological exploration.

2. Survey and exploration of solid mineral deposit.

3.Blasting engineering hole.

4.Inspecting hole of various concrete stucture.

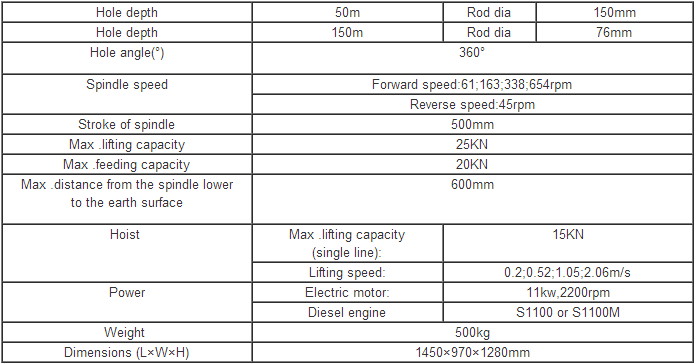

Specifications:
