Portable core drilling rig for sale GXY-2T

  • Product is the original price：0.00
  • inventory：0
  • The product weight：

Quick Details

  • Condition: Used

  • Year: Customised

  • Type: Core Drilling Rig

  • Power Type: Electric

  • Place of Origin: Jiangsu, China (Mainland)

  • Brand Name: xitan

  • Model Number: GXY-2T

  • Usage: engineering construction

  • Voltage: 380V

  • Power(W): 22KW

  • Dimension(L*W*H):2160*950*1800mm

  • Weight: 1000kg

  • Certification: ISO9001:2008

  • Warranty: 6 Months

  • After-sales Service Provided:Engineers available to service machinery overseas

  • Model: GXY-2T

  • Hole Depth: 200-300

  • Drilling angle: 45-90°

  • Stroke of spindle: 600mm

  • Max Torque: 2760N.m

  • Max .lifting capacity: 72KN

  • Max .feeding capacity: 54KN

  • Max.hoisting capacy: 30KN

  • Rope diameter: 16mm

  • Capacity of drum: 50m

Product Description

Model GXY-2T drilling rig is a portable multi-purpose drilling rig for  core exploration and engineering construction.



It  is a machine with drilling rig and drill tower,the tower body is strong,stable,pieces less,easy installation,easy moving,whole weight is light.The drill tower also has the function of up and down,with the simple and reasonable construction,easy to operate.



The drill tower adjusted angle is wide,operating flexibility,especially for wide-angle inclined hole drilling.

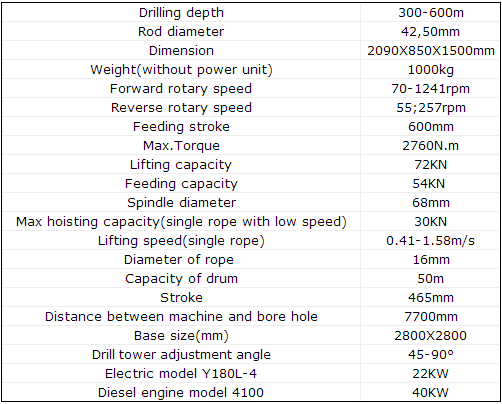

Specifications:
