Horizontal drilling machine for engineering geological exploration&nbs

Quick Details

• Condition: New

• Type: exploration drilling rig

• Power Type: Electric

• Place of Origin: Jiangsu, China (Mainland)

• Brand Name: xitan

• Model Number: GXY-1D

• Usage: geology exploration

• Voltage: 380V

• Power(W): 11kw

• Dimension(L*W*H): 1.98*0.97*1.4m

• Weight: 650kg

• Certification: ISO9001:2008

• Warranty: 6 Months

• After-sales Service Provided:Engineers available to service machinery overseas

• Model: GXY-1D

• Hole Depth: 30,150m

• Rod diameter: 75,150mm

• Hole angle: 360°

• Lifting force: 25KN

• feeding force: 20KN

• Stroke of spindle: 500mm

• Spindle Forward speed:61;163;338;654rpm

• Spindle Reverse speed: 45rpm

• Hoist Max .lifting capacity: 15KN

Quick Detail:

1. GXY-1D drilling rig, the improved product based on GXY-1 drill rig. It is utilized for rig exploration, blast hole drilling, core drilling and inspect hole of concrete.
2.  The rig adopts the hydraulic chuck, it is strong and steady clamping force.
3. The drilling rig has various chassis mode like skid mounted, crawler mounted.
4. The rig can be applicable to the low speed big diameter drilling besides the rapid speed drilling.


Description:

1. GXY-1D is a spindle type drill. It can be used in engineering geological exploration, survey and exploration of solid mineral deposit, inspect hole of various concrete structure, etc.

2. According to various layer, it can be drilling with diamond bit, hard alloy bit, auger bit, etc.
3. The rig and mud pump are motivated respectively.
4. The rig can be applicable to the low speed big diameter drilling besides the rapid speed drilling.
5. The drilling rig has various chassis mode like skid mounted, crawler mounted


Applications:

1.     Exploration prospecting.

2.     Blast hole drilling.

3.     Core drilling and inspect hole of concrete etc.

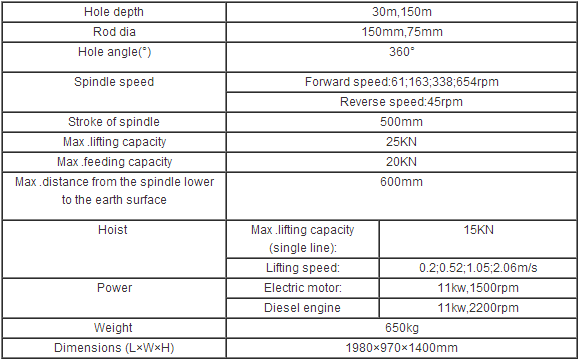

Specifications:
