Hot sale borehole drilling rig equipment GXY-2L

  • Product is the original price：0.00
  • inventory：0
  • The product weight：

Quick Details

  • Condition: New

  • Type: crawler drilling rig

  • Power Type: Diesel

  • Place of Origin: Jiangsu, China (Mainland)

  • Brand Name: xitan

  • Model Number: GXY-2L

  • Usage: geology exploration

  • Voltage: 380V

  • Power(W): 11kw

  • Dimension(L*W*H): 1.45*0.97*1.28m

  • Weight: 500kg

  • Certification: ISO9001:2008

  • Warranty: 6 Months

  • After-sales Service Provided:Engineers available to service machinery overseas

  • Model: GXY-2L

  • Hole Depth: 300-600

  • Drill rod caliber: 42/50mm

  • Drilling angle: 360°

  • Stroke of spindle: 600mm

  • Max .lifting capacity: 25KN

  • Max .feeding capacity: 20KN

  • Hoist Max .lifting capacity: 15KN

  • Spindle Forward speed:70;121;190;263;329;570;899;1241rpm

  • Spindle Reverse speed: 55/257rpm

  • Product Description

  • Quick Detail:
    1. There are more speed grade (8 grades), reasonable speed range and high torque while low speed. Max. torque is up to 2760 N·m .
    2.  Easy to master the hole condition with a long life anti-vibration meter.
    3.    It is convenient for you to treat trouble with two reverse speeds. It is convenient for clamping and loosing drill heave with hydraulic chuck.
    4. This drilling rig has various chassis mode like skid mounted, crawler mounted.


    Description:
    1. Model GXY-2L drilling rig is a kind of spindle rotatory drilling rig. It was developed by Wuxi Mineral Exploration Machinery General Factory, Jiangsu Province. It is suitable for engineering geological prospecting, solid mineral’s survey and exploration, water discharge tunnel.
    2. This drilling rig has various chassis mode like skid mounted, crawler mounted.
    3. Light in weight, the rig can be disassembled easily, the biggest apparatus is in 200kg. The whole drill is in 1000kg, it can be moved easily especially in mountain area.

    Applications:
    1.Engineering geological exploration.
    2. Survey and exploration of solid mineral deposit.
    3.Water discharge tunnel.
    4.Inspecting hole of various concrete stucture.

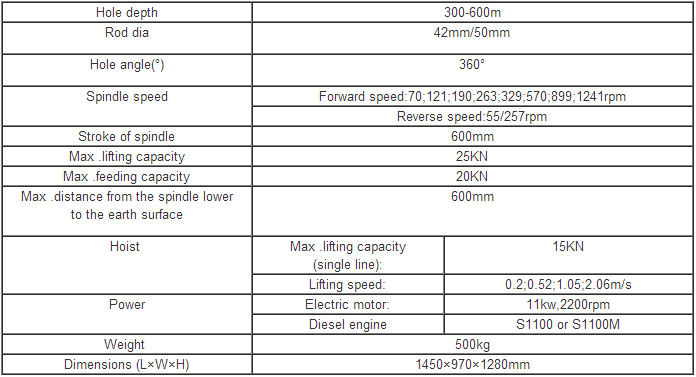

  • Specifications:
