Good used spindle Rotary crawler drilling rig with high

  • Product is the original price：0.00
  • inventory：0
  • The product weight：

Quick Details

  • Condition: New

  • Type: Rotary Drilling Rig

  • Power Type: Electric

  • Place of Origin: Jiangsu, China (Mainland)

  • Brand Name: xitan

  • Model Number: GXY-2KL

  • Usage: geology engineering

  • Voltage: 380V

  • Power(W): 15KW

  • Dimension(L*W*H):1.856*0.78*1.46m

  • Weight: 800kg

  • Certification: ISO9001:2008

  • Warranty: 6 Months

  • After-sales Service Provided:Engineers available to service machinery overseas

  • Model: GXY-2KL

  • Hole Depth: 200m

  • rod diameter: 42,50mm

  • Hole angle: 0-90°

  • Lifting force: 49KN

  • feeding force: 36KN

  • Stroke of spindle: 500mm

  • Max.torque of spindle: 1800NM

  • forward speed:56;97;153;211;264;458;722;996rpm

  • lifting speed: 0.38;0.66;1.05;1.44m/s

  • Quick Detail:

  •

  • 1. Model GXY-2KL drilling rig is a kind of spindle rotatory drilling rig. This drilling rig has various chassis mode like skid mounted, crawler mounted.

  •

  • 2. It is suitable for engineering geological prospecting, solid mineral’s survey and exploration, foundation pile construction.

  •

  • 3. It can choose bits, such as diamond bits, hard alloy bits while drilling in accordance with different formation.

  •

  • 4. There are more speed grade (8 grades), reasonable speed range and high torque while low speed. Max. torque is up to 2760 N·m .

  •

  • Description:

  •

  • 1. Model GXY-2KL drilling rig is a kind of spindle rotatory drilling rig. With powerful drilling capacity, It is suitable for engineering geological prospecting, solid mineral’s survey and exploration, foundation pile construction.

  •

  • 2. This drilling rig has various chassis mode like skid mounted, crawler mounted.

  •

  • 3. There are more speed grade (8 grades), reasonable speed range and high torque while low speed. Max. torque is up to 2760 N·m.

  •

  • 4. It can choose bits, such as diamond bits, hard alloy bits while drilling in accordance with different formation.

  •

  • 5. It is compact in construction, rational in overall arrangement, moderate in weight, convenient in assembling and wide in range of rotation speed.

  • Applications:

  •

  • 1.     Engineering geological prospecting.

  •

  • 2.     Solid mineral’s survey and exploration.

  •

  • 3.     Foundation pile construction

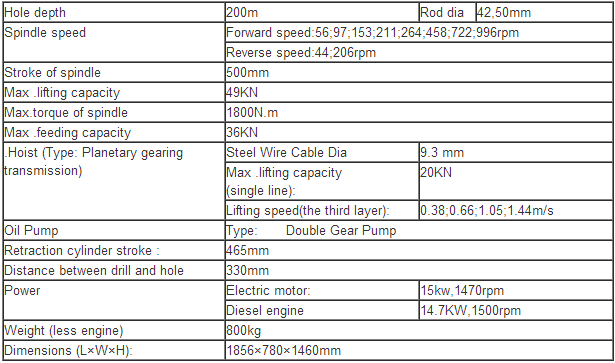

  • Specifications:
