Core rotary Drilling Rig for Exploration GXY-2B

Quick Details

• Condition: New

• Type: Core Drilling Rig

• Power Type: Diesel

• Place of Origin: Jiangsu, China (Mainland)

• Brand Name: xitan

• Model Number: GXY-2B

• Usage: Exploration drilling

• Voltage: 380V

• Power(W): 395KW

• Dimension(L*W*H): 2.16*0.95*1.8m

• Weight: 1000kg

• Certification: ISO9001:2008

• Warranty: 6 Months

• After-sales Service Provided:Engineers available to service machinery overseas

• Model: GXY-2B

• Spindle I.D: 80mm

• Drilling angle: 0-90°

• Stroke of spindle: 600mm

• Max .lifting capacity: 72KN

• Max .feeding capacity: 54KN

• Hoist Max .lifting capacity: 30KN

• Forward speed: 56-998rpm

• Reverse speed: 44-207rpm

• Vertical height: 7.5m

• Product Description

• 1. Model GXY-2B drilling rig is a kind of spindle rotatory drilling rig. It is suitable for engineering geological prospecting, solid mineral’s survey and exploration, mound grout and drainage of all kinds of concrete structure. It can choose bits, such as diamond bits, hard alloy bits while drilling in accordance with different formation.

•
  2. GXY-2B drilling rig is developed from GXY-2,the same technical performance, structural features main increased vertical shaft through hole, and relative to reduce the vertical shaft speed, increase the vertical shaft torque.

•
  3. Light in weight, the rig can be disassembled easily, the biggest apparatus is in 200 kg. The whole drill is in 1000kg, it can be moved easily especially in mountain area.

•
  4. It is particularly applicable to construction, water and electricity engineering, highway, railway, port construction of engineering construction. It is also suitable for engineering geological prospecting, solid mineral’s survey and exploration, water discharge tunnel.

•

• Applications:

• 1.Engineering geological exploration.

•
  2. Survey and exploration of solid mineral deposit.

•
  3.Water discharge tunnel.

•
  4.Inspecting hole of various concrete stucture.

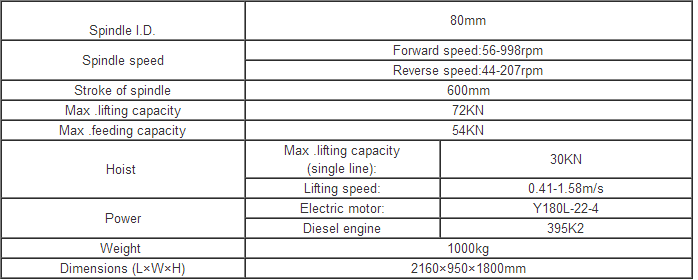

• Specifications:

•
