Jet grouting hydraulic anchor drilling rig MDL-160D

  • Product is the original price：0.00
  • inventory：0
  • The product weight：

Quick Details

  • Condition: New

  • Type: jet grouting drilling rig

  • Power Type: Electric

  • Place of Origin: Jiangsu, China (Mainland)

  • Brand Name: xitan

  • Model Number: MDL-160D

  • Usage: anchoring

  • Voltage: 380V

  • Power(W): 55+30+2.2

  • Dimension(L*W*H):6350*2100*2250mm

  • Weight: 8800kg

  • Certification: ISO9001:2008

  • Warranty: 6 Months

  • After-sales Service Provided:Engineers available to service machinery overseas

  • Model: MDL-160D

  • Hole Depth: 140-180m

  • Rod dia: 89,102,114mm

  • Hole angle: 0-90°

  • Lifting force: 78KN

  • feeding force: 40KN

  • Stroke of slide frame: 1500mm

  • stroke of power head: 7000mm

  • Output torque of power head: 1000N.M

  • Output rotary speed of power head:40/45/80/85/90/170r/min

  • Quick Detail:

  •

  • 1. MDL-160D drilling rig is a kind of full hydraulic power head crawler drilling rig.

  •

  • 2.  The great rotary torque and long feeding stroke distance of the drilling rig make the speed of borehole faster, the disposal capability of accident better and efficiency of drilling work higher.

  •

  • 3. The equipment is mounted on the crawler with the turning platform mechanism which makes the moving and walking more and more convenient.

  •

  • 4. This rig can be used for single,double and triple tube jet grouting drilling,and can be used with double

  • casing drilling.

  •

  •

  • Description:

  •

  • 1.The drilling mainly for anchoring and jet-grouting, which is designed and produced by Jiangsu Wuxi Mineral Exploration Machinery General Factory Co., Ltd. It is mainly applied in drilling work of the anchoring hole of high buildings deep basement foundation, and also used in drilling the drain hole. It can be also used for foundation pit,the blast hole,the anti-floating anchoring hole .

  •

  • 2. The route of shaft bracket is 3.4 meters, so the 135D crawler anchor drilling rig can have complex rod & casing drill for 3 meters. The rig is applicable to rod boring, casing drilling and complex rod & casing drilling.

  •

  • 3. It can be used for jet grouting, which is applicable to single jet grouting, double jet grouting and triple jet grouting.

  •

  • 4. The hydraulic clamp & wrench device enormously decreases the assistant time and also reduces the intensity of operating work.

  •

  • 5.Based on different stratums,we can adjust torque and rotary speed of drilling rig to increase the rig adaptability.

  • Applications:

  •

  • 1.Anchor.It can be used in anchor drilling when the main shaft connect with drill rod/drill pipe,casing,also with casing-followed drill tools.

  •

  • 2.Jet-grouting.It can be used in single pipe,double pipe and triple-pipe jet-grouting,etc.It can meet the following construction technique after equipped different module:

  •

  • 3.Dewatering for foundation pit.

  •

  • 4.Micro-pile.

  •

  • 5.Geothermy hole(water well)engineering and exploration.

  •

  • 6.GPT(5T of the CPT)

  •

  • 7.Dynamic Penetration.

  •

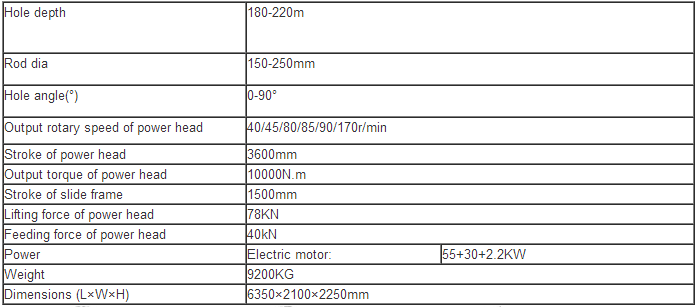

  • Specifications:
