Well used crawler drill rig with rotary jet grouting MD
- Product is the original price：0.00
- inventory：0
- The product weight：
Quick Details
Condition: New
Type: Rotary Drilling Rig
Power Type: Electric
Place of Origin: Jiangsu, China (Mainland)
Brand Name: xitan
Model Number: MDL-80H
Usage: geology engineering
Voltage: 380V
Power(W): 30+11+1.5
Dimension(L*W*H):4885*2120*1800mm
Weight: 4200kg
Certification: ISO9001:2008
Warranty: 6 Months
After-sales Service Provided:Engineers available to service machinery overseas

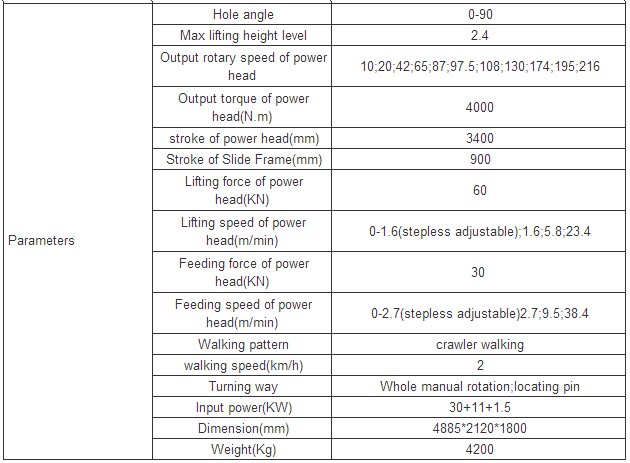

Model: MDL-80H
Hole Depth: 60-90m
Rod dia: 73,89,102,114
Hole angle: 0-90°
Lifting force: 60KN
feeding force: 30KN
Stroke of slide frame: 900mm
stroke of power head: 3400mm
Output torque of power head: 4000NM
Max lifting height(m): 2.4
Product Description

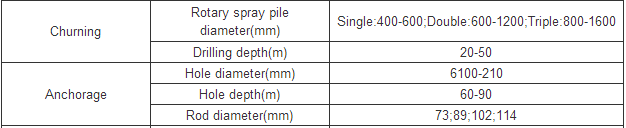

1.Application:
(1)Max speed can reach 216r/min,better for twist drill,soil layer.
(2)Anchor is fit for rod drilling,casing drilling,rod and casing complex drilling etc.
(3)Rotary jet grouting is fit for single,double,triple jet grouting ect.
2. Through different module configuration,it can fit following process:
(1) foundation pit dewatering
(2)mining drilling rig
(3)Water well
3.Torque,speed can work reasonable matching according actual requirement,the stroke is 34000mm,can use 3000mm rod and casing complex drill.It can configure corresponding torque power head according different stratum.
