Well used crawler drilling rig manufacturers for anchor MDL-

  • Product is the original price：0.00
  • inventory：0
  • The product weight：

Quick Details

  • Condition: New

  • Type: carwler drilling rig

  • Power Type: Electric

  • Place of Origin: Jiangsu, China (Mainland)

  • Brand Name: xitan

  • Model Number: MDL-60C

  • Usage: geology engineering

  • Voltage: 380V

  • Power(W): 22+1.5+0.15KW

  • Dimension(L*W*H): 3.4*0.65*1.4m

  • Weight: 2300kg

  • Certification: ISO9001:2008

  • Warranty: 6 Months

  • After-sales Service Provided:Engineers available to service machinery overseas

  • Model: MDL-60C

  • Hole Depth: 50-80m

  • rod diameter: 90-185

  • Hole angle: 0-90°

  • Lifting force: 42.5KN

  • feeding force: 25KN

  • Stroke of power head: 1800mm

  • Stroke of spindle: 2500mm

  • stroke of slide frame: 600mm

  • Output torque of power head: 2500N.M

Quick Detail:

1.  MDL-60C drilling rig is a kind of full hydraulic power head multifunctional crawler drilling rig. Its drilling diameter is 90-150mm, and drilling depth 50-80m.
2. The shaft bracket of 1200MM is suitable for the construction of less space.
3.  It can apply to the construction of big tonnage stress anchoring hole for water power station, railway, highway, drainage hole and geologic calamity for landslide prevention and rock collapse.
4.  Drilling machine power head adopts double hydraulic motor drive. With large output torque, the rotary center was lower than those of similar products, greatly improving the stability of crawler anchor drill rig.


Description:
1. MDL-60C drilling rig is a kind of full hydraulic power head multifunctional crawler drilling rig. Its drilling diameter is 90-150mm, and drilling depth 50-80m.
2. In addition, this  anchor crawler drilling rig is stable, efficient , and able to drill complex layers and deal with accidents.
3. Drilling machine power head adopts double hydraulic motor drive. With large output torque, the rotary center was lower than those of similar products, greatly improving the stability of crawler anchor drill rig.
4. The hydraulic clamp & wrench device enormously decreases the assistant time and also reduces the intensity of operating work..
5. The anchor drilling machine is an integral type, and is equipped with crawler chassis and holding shackle.
6. It can apply to the construction of big tonnage stress anchoring hole for water power station, railway, highway, drainage hole and geologic calamity for landslide prevention and rock collapse.

Applications:

It can apply to the construction of big tonnage stress anchoring hole for water power station, railway, highway, drainage hole and geologic calamity for landslide prevention and rock collapse.

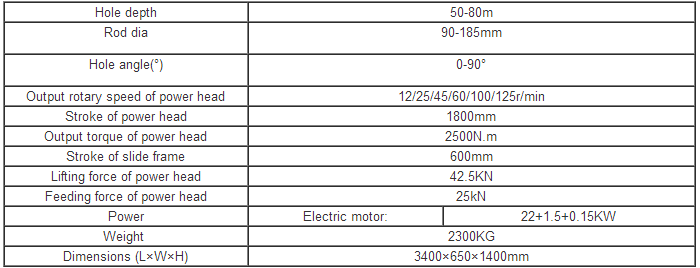

Specifications:
