Crawler anchoring hydraulic drill rigs for geology MDL-160G

  • Product is the original price：0.00
  • inventory：0
  • The product weight：

Quick Details

  • Condition: New

  • Type: anchor drilling rig

  • Power Type: Electric

  • Place of Origin: Jiangsu, China (Mainland)

  • Brand Name: xitan

  • Model Number: MDL-160G

  • Usage: geology

  • Voltage: 380V

  • Power(W): 40+30+2.2KW

  • Dimension(L*W*H): 6.4*2.1*2.4m

  • Weight: 7200kg

  • Certification: ISO9001:2008

  • Warranty: 6 Months

  • After-sales Service Provided:Engineers available to service machinery overseas

  • Model: MDL-160G

  • Hole Depth: 140-180m

  • Hole diameter: 150-250mm

  • Hole angle: 0-90°

  • Lifting force: 75KN

  • Feeding force: 40KN

  • Stroke of slide frame: 1500mm

  • Stroke of power head: 3600mm

  • Output torque of power head: 9700NM

  • Output rotary speed of power head: 40, 45, 80, 85, 90, 170r/min

Quick Detail:

1. The power head of MDL160G adopts imported Germany-made product, and the top of the power head can vibrate with big power without DTH hammer or air compressor.
2. The drilling tools  from the outer to the inner and all involved in the transmission of the impact power, it is not easy to happen the hole accidents such as drill sticking.

3.This top head drive drill rig adopts variable hydraulic system.
4.MDL-160G is applicable to a wide-range of strata with big torque, high rotary speed, and big power.When meeting those fragile holes such as sand gravel layer, gravel layer, sand stone soil, sand hole, the top drive drill equipment has a very high penetration rate and drilling efficiency. Especially when the moisture content of local layer is too high to use DTH hammer when work, this top head drive drill rig is the only choice.

Description:

1. MDL-160G is a kind of full hydraulic power head anchor crawler drilling rig . Its drilling depth is 140-180m, and drilling diameter 150-250mm.
2. The power head of MDL160G adopts imported Germany-made product, and the top of the power head can vibrate with big power without DTH hammer or air compressor.Finsh the hole with high efficiency and good effcts.
3. MDL-160G is applicable to a wide-range of strata with big torque, high rotary speed, and big power.When meeting those fragile holes such as sand gravel layer, gravel layer, sand stone soil, sand hole, the top drive drill equipment has a very high penetration rate and drilling efficiency. Especially when the moisture content of local layer is too high to use DTH hammer when work, this top head drive drill rig is the only choice.

4. This top head drive drill rig adopts variable hydraulic system.The drilling tools  from the outer to the inner and all involved in the transmission of the impact power, it is not easy to happen the hole accidents such as drill sticking.

5. This top drive drill equipment is applicable to anchor hole, such as urban foundation pit supporting . And is mainly applied to construction engineering supporting, slope supporting,all kinds of guide hole, tunnel and pipe shed engineering, etc.

Applications:

1. Anchor hole, such as urban foundation pit supporting .

2. It is mainly applied to construction engineering supporting, slope supporting,all kinds of guide hole, tunnel and pipe shed engineering, etc.

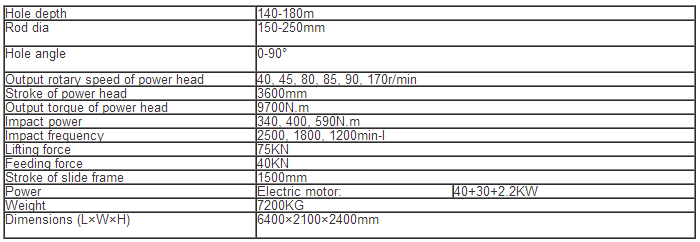

Specifications:
