Hydraulic drill rigs for deep foundation pit anchor MDL-150D

Quick Details

• Condition: New

• Type: anchor drilling rig

• Power Type: Diesel

• Place of Origin: Jiangsu, China (Mainland)

• Brand Name: xitan

• Model Number: MDL-150D

• Usage: geology drilling

• Voltage: 380V

• Power(W): 55+18.5

• Dimension(L*W*H): 5.4*2.1*2.0m

• Weight: 7000kg

• Certification: ISO9001:2008

• Warranty: 6 Months

• After-sales Service Provided:Engineers available to service machinery overseas

• Model: MDL-150D

• Hole Depth: 130-170m

• Rod dia: 73,89,102,114

• Hole angle: 0-90°

• Lifting force: 70KN

• feeding force: 36KN

• Stroke of slide frame: 900mm

• stroke of power head: 3400mm

• Output torque of power head: 7500NM

• Output rotary speed of power head:10/20/30/35/40/60/65/70/85/130/170r/min

• Quick Detail:
  1. This MDL-150D is a kind of full hydraulic power head anchor crawler drilling rig . Its drilling depth is 130-170m, and drilling diameter 150-250mm.
  2. According to the customer's requirements, the torque and rotate speed can be adjusted to achieve good efficiency. The speed of this drill rig can achieve 170 circles every minute. It is increased by 20% compared with that kind of 135D.
  3. The MDL-150D anchor crawler drilling rig can do single, double and triple jet grouting.
  4. The MDL-150D anchor crawler drilling rig is just applied to the rock and broken layer construction.

  Description:
  1. This MDL-150D is a kind of full hydraulic power head anchor crawler drilling rig . Its drilling depth is 130-170m, and drilling diameter 150-250mm.
  2. The crawler drill rig is mainly applied to urban subway, high-rise buildings, airport, ground source heat pump and other deep foundation pit for anchoring, jet grouting and dewatering.
  3. In addition, this 150D anchor crawler drilling rig is stable, efficient , and able to drill complex layers and deal with accidents.
  4. The hydraulic clamp & wrench device enormously decreases the assistant time and also reduces the intensity of operating work..
  5. The 150D anchor crawler drilling rig is just applied to the rock and broken layer construction.


  Applications:
  1. Urban subway, high-rise buildings, airport, ground source heat pump and other deep foundation pit for anchoring.
  2. Jet grouting and dewatering.
  3. This engineering drill rig can be used for drilling geothermal hole and well.
  4. The blast hole,the anti-floating anchoring hole .

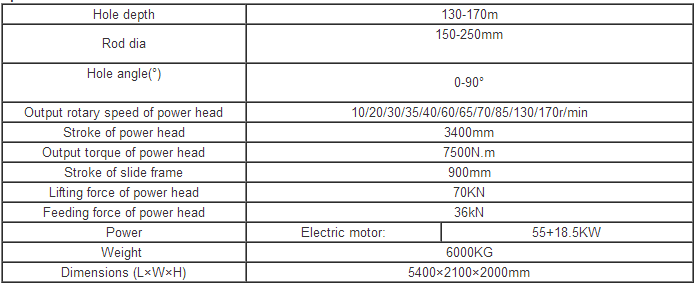

• Specifications:

•
