XY-4T drilling rig with hydraulic tower for sale

  • Product is the original price：0.00
  • inventory：0
  • The product weight：

Quick Details

  • Condition: New

  • Type: Core Drilling Rig

  • Power Type: Diesel

  • Place of Origin: Jiangsu, China (Mainland)

  • Brand Name: xitan

  • Model Number: XY-4T

  • Usage: Ore

  • Voltage: 380V

  • Power(W): 37KW

  • Dimension(L*W*H): 3.55*1.25*4.05m

  • Weight: 4000kg

  • Certification: ISO9001:2008

  • Warranty: 6 Months

  • After-sales Service Provided:Engineers available to service machinery overseas

  • Model: XY-4T

  • Hole Depth: 700-1000m

  • Feeding stroke: 600mm

  • Max.Torque: 2650NM

  • Max. Hoisting Force: 30KN

  • Max .lifting capacity: 80KN

  • Max .feeding capacity: 60KN

  • Nominal Height of Tower: 10m

  • Nominal Area of Base: 4*4m

  • Max. Load of Mast: 800N

Product Description

1. XY-4T can be widely used in the carbide and diamond bits, engineering geological exploration, exploitation of superficial-zone petroleum and natural gas, mine workings ventilation and water discharge tunnel drilling.
2. The XY-4T core drill rig, integrated rig with tower into one unit, consists of XY-4 drill rig and mast-type drill tower, with the function of hydraulic lifting and lowering of tower.
3. The rig is simple in structure, reasonable in design, light in weight, easy to operate; it is in a wide range adjusting angle. It is especially suitable for drilling of hole with great slope angle.
4. The tower body of XY-4T Drill Rig is used as lifting drill tools for drilling vertical as well as inclined holes. The range of adjusting angels (in clock-wise direction) for drilling inclined holes is 0°-90°.
5. Less control handles have been equipped for the drilling rig.



Applications:

1. Core drilling with carbide and diamond bit .
2. Engineering geological prospecting.
3. Water discharge tunnel.
4. Exploitation of superficial-zone petroleum and natural gas, mine workings ventilation.

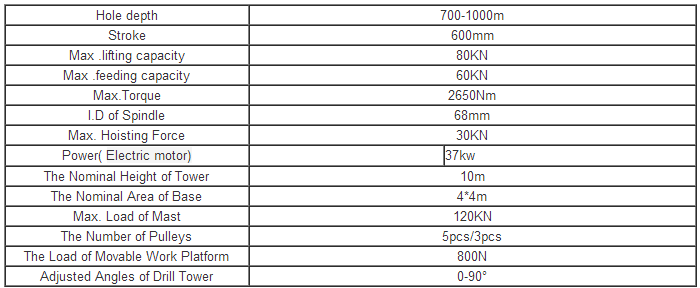

Specifications:
