Well used core drilling rig with powerful drilling capacity&

  • Product is the original price：0.00
  • inventory：0
  • The product weight：

Quick Details

  • Condition: New

  • Type: Core Drilling Rig

  • Power Type: Diesel

  • Place of Origin: Jiangsu, China (Mainland)

  • Brand Name: xitan

  • Model Number: XY-6

  • Usage: geology exploration

  • Voltage: 380V

  • Power(W): 55KW

  • Dimension(L*W*H): 3.45*1.5*2.25m

  • Weight: 3800kg

  • Certification: ISO9001:2008

  • Warranty: 6 Months

  • After-sales Service Provided:Engineers available to service machinery overseas

  • Model: XY-6

  • Spindle Speed: 1500 r/min

  • Stroke of spindle: 600mm

  • Max .lifting capacity: 200KN

  • Max .feeding capacity: 150KN

  • Backward Stroke: 550mm

  • Max.torque of spindle: 8500N.M

  • Steel Wire Cable Dia: 20mm

  • Max .lifting capacity (single line): 60KN

  • Working Speed: 700-800rpm

Product Description

1. XY-6 is a core drilling rig for deep hole. With powerful drilling capacity, the rated drilling depth comes up to 1,600m with wire line 71mm drill rod.


2. It not only apply to core drilling with carbide and diamond bits but also be used on areas such as engineering geological exploration, water well drilling and big diameter pile foundation engineering.


3. It is compact in construction, rational in overall arrangement, moderate in weight, convenient in assembling and wide in range of rotation speed.


4. Supplying oil with a simplex gear pump, it is easy for installation and operation; The hand-operated oil pump can be put in use to hoist the drilling tools in hole upon the power engine failing to operate.



Applications:

1. Core drilling with carbide and diamond bit.


2. Engineering geological prospecting.


3. water well drilling as well as  foundation pile construction in large diameter.

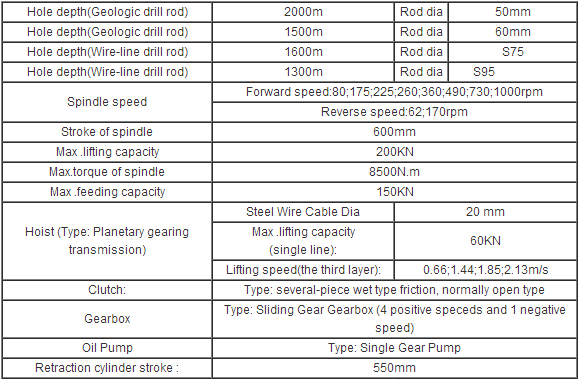

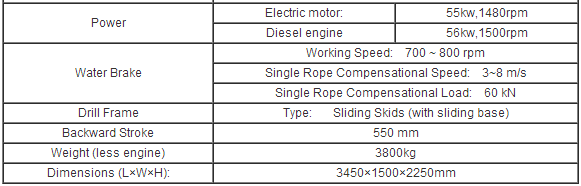

Specifications:
